Copper Wire Set
Copper Wire Set
Regular price
CHF 32.00
Regular price
CHF 6.45
Sale price
CHF 32.00
Unit price
/
per
Taxes included.
Shipping from China - CHF 5.- per order, 2-3 weeks Shipping from Swiss - CHF 25.- per order, 2-5 days
Couldn't load pickup availability

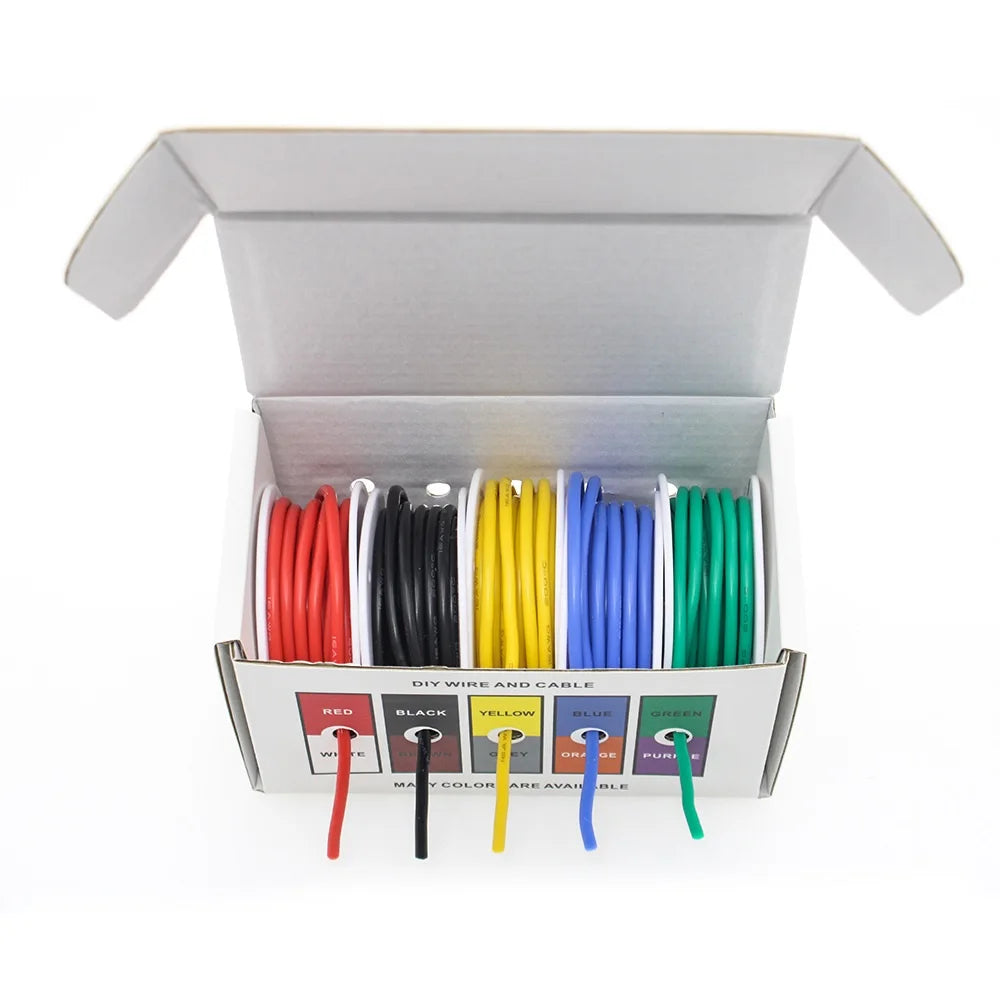

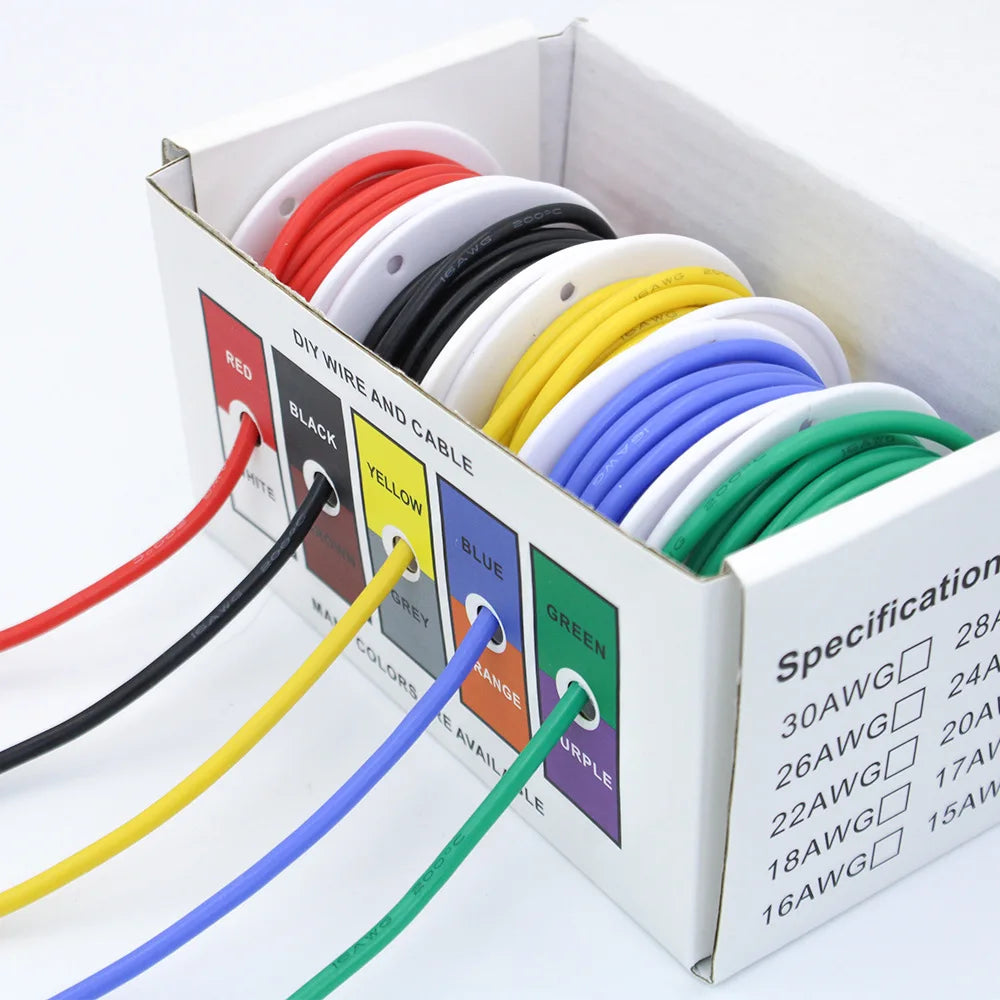

Box of Tinned Copper Wires with Quality Silicone Insulation (Anti-burn)
Comparison of Wires
| Wire Size [AWG] | 24 | 22 | 20 | 18 |
| Wire Size [mm²] | 0.2 | 0.3 | 0.5 | 0.75 |
| Max Continuous Current [A] | 0.5 | 1.0 | 1.5 | 2.3 |
| Max Peak Current [A] | 2.0 | 3.0 | 5.0 | 7.0 |
microver.ch recommandation is:
- 22 AWG to the motors
- 18 AWG from the battery
Specification of Box
Size of Box: 130x70x70 [mm]
Number of Spools: 5 [spools]
Length of Wire per Spool: 5 [meters]
Specification of Wire
Max Rated Voltage: 600 [Volts]
Temperature Range: -60°C to +200°C
Certifications: UL, RoHS, VW-1, CSA FT1
